Dynamic analysis of an articulated beam

This example illustrates how to set up a dynamic analysis, using the articulated beam in free flight proposed by Simo and Vu-Quoc:

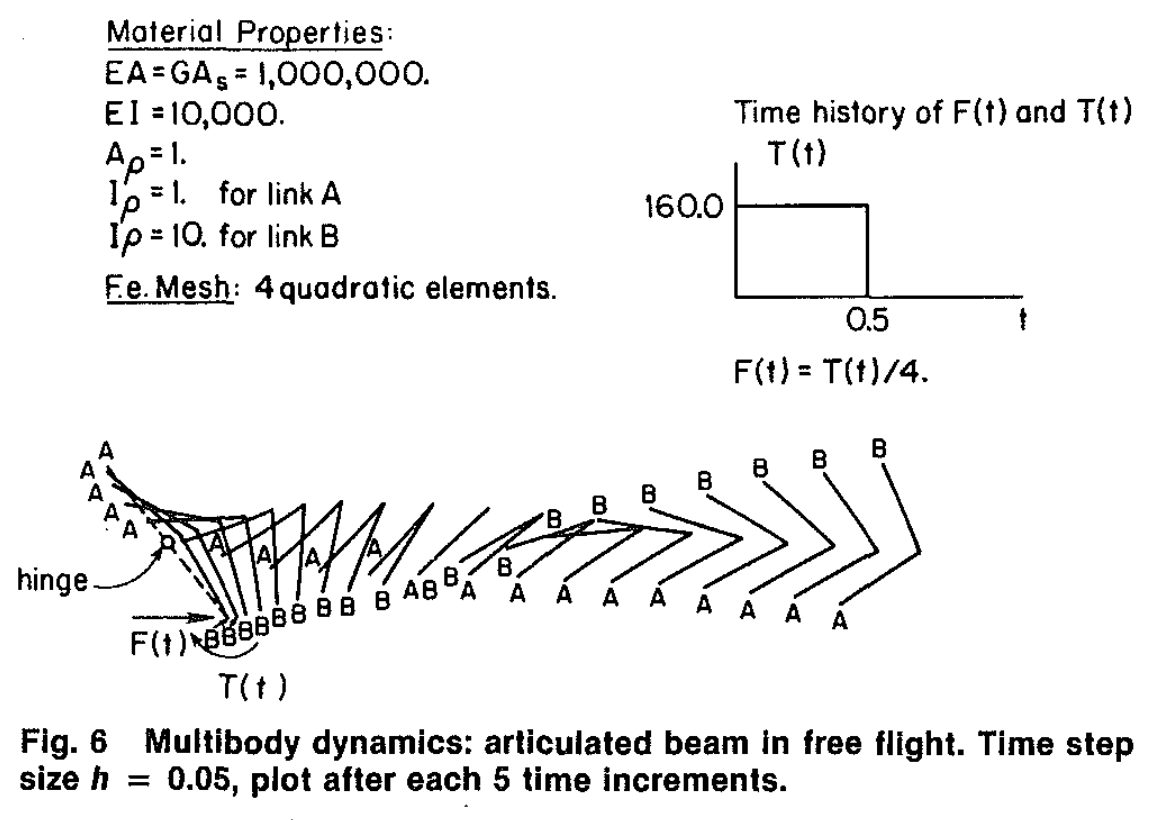

Articulated beam: definition and motion by Simo and Vu-Quoc

Beam

The set up of this problem begins with the definition of the articulated links (beams), each with its own inertia properties. Notice, however, that we create a single beam, which has different properties for each half of its elements. This beam has a hinge defined by the arguments hingedNodes and hingedNodesDoF of the function create_Beam.

using AeroBeams, LinearAlgebra

# Beam
L = 10
EA,GA,GJ,EI = 1e6,1e6,1e6,1e4
ρA,ρI1,ρI2 = 1,1,10
θ₀ = atan(4/3)
nElem = 20
stiffnessMatrix = diagm([EA,GA,GA,GJ,EI,EI])
inertiaMatrix1 = diagm([ρA,ρA,ρA,2*ρI1,ρI1,ρI1])
inertiaMatrix2 = diagm([ρA,ρA,ρA,2*ρI2,ρI2,ρI2])
inertiaMatrices = vcat([inertiaMatrix2 for _ in 1:div(nElem,2)],[inertiaMatrix1 for _ in 1:div(nElem,2)])
beam = create_Beam(name="beam",length=L,nElements=nElem,S=[stiffnessMatrix],I=inertiaMatrices,rotationParametrization="E321",p0=[0;θ₀;0],hingedNodes=[div(nElem,2)+1],hingedNodesDoF=[[false,true,false]])

Boundary conditions

The boundary conditions consist of the force and moment impulses applied at one end of the beam.

# BCs
M₀ = 160
τ = 0.5
M2 = t -> ifelse.(t.<=τ, M₀, 0)
F1 = t -> M2(t)/4
forces = create_BC(name="forces",beam=beam,node=nElem+1,types=["F1A","M2A"],values=[t->F1(t),t->M2(t)])

Model

Our model is composed of the beam and the boundary conditions. We name it flyingScissors.

# Model
flyingScissors = create_Model(name="flyingScissors",beams=[beam],BCs=[forces])

Problem

The problem is solved for a total time tf, with a time step Δt.

# Time variables
tf = 5
Δt = 5e-2

# Initial velocities update options
initialVelocitiesUpdateOptions = InitialVelocitiesUpdateOptions(maxIter=2, Δt=Δt/10)

# Create and solve the problem
problem = create_DynamicProblem(model=flyingScissors,finalTime=tf,Δt=Δt,initialVelocitiesUpdateOptions=initialVelocitiesUpdateOptions)
solve!(problem)

Post-processing

The first post-processing step is to retrieve the outputs of interest, namely the displacements at each end of the articulated beam.

# Unpack numerical solution
t = problem.timeVector
u1_tipA = [problem.nodalStatesOverTime[i][1].u_n2[1] for i in 1:length(t)]
u3_tipA = [problem.nodalStatesOverTime[i][1].u_n2[3] for i in 1:length(t)]
u1_tipB = [problem.nodalStatesOverTime[i][nElem].u_n2[1] for i in 1:length(t)]
u3_tipB = [problem.nodalStatesOverTime[i][nElem].u_n2[3] for i in 1:length(t)]
u1_hinge = [problem.nodalStatesOverTime[i][div(nElem,2)].u_n2[1] for i in 1:length(t)]
u3_hinge = [problem.nodalStatesOverTime[i][div(nElem,2)].u_n2[3] for i in 1:length(t)]

Let's plot the displacements at the tip of each link and at the hinge.

using Plots
gr()

# Nomalized u1 displacements
labels = ["Tip A" "Hinge" "Tip B"]
plt1 = plot(xlabel="\$t\$ [s]", ylabel="\$u_1/L\$")
plot!(t,[u1_tipA/L, u1_hinge/L, u1_tipB/L], lw=2, label=labels)

# Nomalized u3 displacements
plt2 = plot(xlabel="\$t\$ [s]", ylabel="\$u_3/L\$")
plot!(t,[u3_tipA/L, u3_hinge/L, u3_tipB/L], lw=2, label=labels)

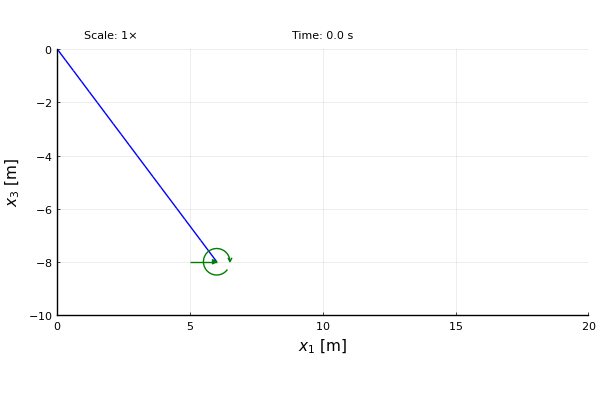

Finaly, we may visualize the motion of the beam using the function plot_dynamic_deformation with the appropriate inputs. It correlates well with the one displayed by Simo and Vu-Quoc.

# Animation
plot_dynamic_deformation(problem,refBasis="I",plotFrequency=1,plotLimits=([0,2*L],[-L/2,L/2],[-L,0]),save=true,savePath="/docs/build/literate/flyingScissors_motion.gif")
