Static structural analysis of composite beams

This example illustrates how to set up a static structural analysis of composite beams. We will investigate the deflection of several composite beams under tip loads caused by attached weights. This problem was proposed by Minguet and Dugundji:

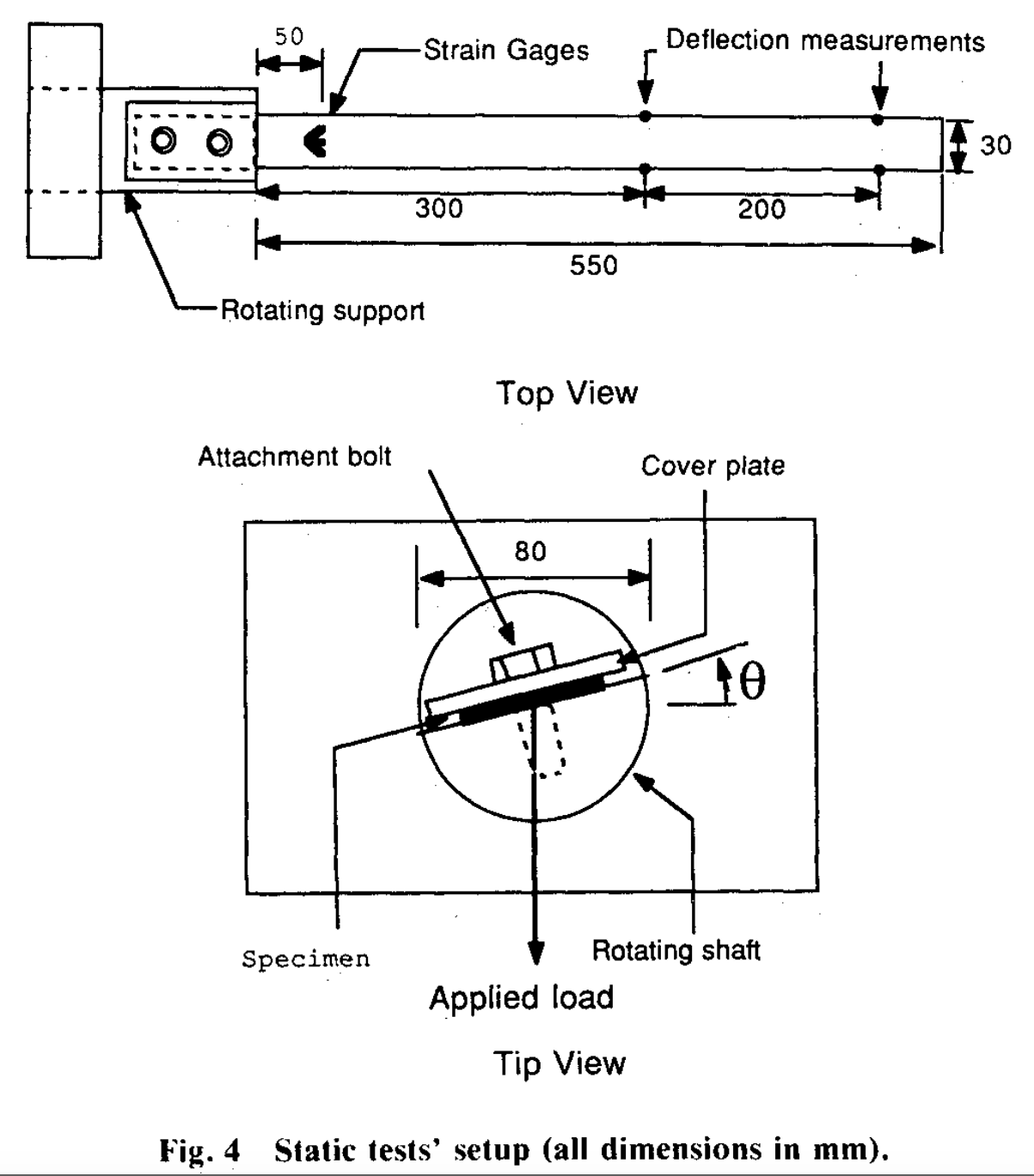

Beam geometry by Minguet and Dugundji

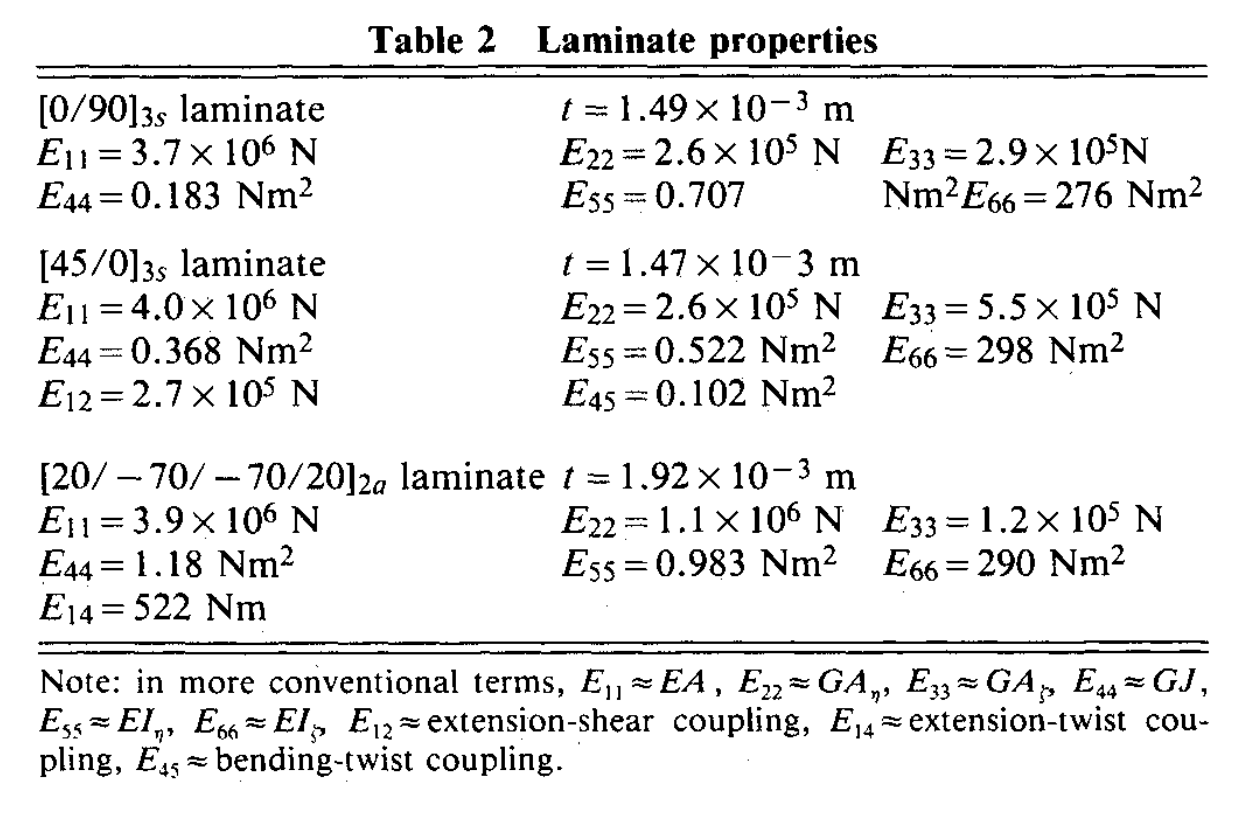

Laminate properties by Minguet and Dugundji

Tip

The code for this example is available here.

Problem setup

Let's begin by setting up the variables of our problem. We create three beams, each of a different composite laminate, clamp them ar the root, and apply the tip load. Notice that only beam 1 has a diagonal sectional stiffness matrix, whereas the others have coupling terms.

using AeroBeams, LinearAlgebra, DelimitedFiles

# Properties common to all beams
L = 0.55
nElem = 22

# Rotation angles
θRange = π/4*[0, 1]

# Gravity
g = 9.80665

# Tip load mass
m = 0.5

# Tip weight
W = m*g

# Beam 1
stiffnessMatrix1 = diagm([3.7e6,2.6e5,2.9e5,0.183,0.707,276])
beam1 = create_Beam(name="beam1",length=L,nElements=nElem,S=[stiffnessMatrix1],rotationParametrization="E321")

# Beam 2
stiffnessMatrix2 = diagm([4e6,2.6e5,5.5e5,0.368,0.522,298])
stiffnessMatrix2[1,2] = stiffnessMatrix2[2,1] = -2.7e5
stiffnessMatrix2[4,5] = stiffnessMatrix2[5,4] = -0.102
beam2 = create_Beam(name="beam2",length=L,nElements=nElem,S=[stiffnessMatrix2],rotationParametrization="E321")

# Beam 3
stiffnessMatrix3 = diagm([3.9e6,1.1e6,1.2e5,1.18,0.983,290])
stiffnessMatrix3[1,4] = stiffnessMatrix3[4,1] = -522
beam3 = create_Beam(name="beam3",length=L,nElements=nElem,S=[stiffnessMatrix3],rotationParametrization="E321")

# BCs
clamp1 = create_BC(name="clamp1",beam=beam1,node=1,types=["u1A","u2A","u3A","p1A","p2A","p3A"],values=[0,0,0,0,0,0])
tipLoad1 = create_BC(name="tipLoad1",beam=beam1,node=nElem+1,types=["F3A"],values=[-W])
clamp2 = create_BC(name="clamp2",beam=beam2,node=1,types=["u1A","u2A","u3A","p1A","p2A","p3A"],values=[0,0,0,0,0,0])
tipLoad2 = create_BC(name="tipLoad2",beam=beam2,node=nElem+1,types=["F3A"],values=[-W])
clamp3 = create_BC(name="clamp3",beam=beam3,node=1,types=["u1A","u2A","u3A","p1A","p2A","p3A"],values=[0,0,0,0,0,0])
tipLoad3 = create_BC(name="tipLoad3",beam=beam3,node=nElem+1,types=["F3A"],values=[-W])

# Models
compositeCantilever1 = create_Model(name="compositeCantilever1",beams=[beam1],BCs=[clamp1,tipLoad1])
compositeCantilever2 = create_Model(name="compositeCantilever2",beams=[beam2],BCs=[clamp2,tipLoad2])
compositeCantilever3 = create_Model(name="compositeCantilever3",beams=[beam3],BCs=[clamp3,tipLoad3])

# Set system solver options
σ0 = 0
σstep = 0.1
NR = create_NewtonRaphson(initialLoadFactor=σ0,maximumLoadFactorStep=σstep,minimumLoadFactorStep=σstep)

# Initialize outputs: displacements at x1 = 500 mm
σVector = Array{Vector{Float64}}(undef,3,2)
u1_500mm = Array{Vector{Float64}}(undef,3,2)
u2_500mm = Array{Vector{Float64}}(undef,3,2)
u3_500mm = Array{Vector{Float64}}(undef,3,2)

Problem solution

We can sweep the range of root rotation angle, θRange, to find the solution at each value for each beam.

# Loop root angles
for (j,θ) in enumerate(θRange)
    # Update beams' rotation
    beam1.p0[3] = beam2.p0[3] = beam3.p0[3] = θ
    update_beam!(beam1); update_model!(compositeCantilever1)
    update_beam!(beam2); update_model!(compositeCantilever2)
    update_beam!(beam3); update_model!(compositeCantilever3)
    # Create and solve the problems
    problem1 = create_SteadyProblem(model=compositeCantilever1,systemSolver=NR)
    problem2 = create_SteadyProblem(model=compositeCantilever2,systemSolver=NR)
    problem3 = create_SteadyProblem(model=compositeCantilever3,systemSolver=NR)
    solve!(problem1)
    solve!(problem2)
    solve!(problem3)
    # Save outputs
    σVector[1,j] = problem1.savedσ
    σVector[2,j] = problem2.savedσ
    σVector[3,j] = problem3.savedσ
    u1_500mm[1,j] = [problem1.nodalStatesOverσ[i][nElem-1].u_n1[1] for i in 1:length(σVector[1,j])]
    u1_500mm[2,j] = [problem2.nodalStatesOverσ[i][nElem-1].u_n1[1] for i in 1:length(σVector[2,j])]
    u1_500mm[3,j] = [problem3.nodalStatesOverσ[i][nElem-1].u_n1[1] for i in 1:length(σVector[3,j])]
    u2_500mm[1,j] = [problem1.nodalStatesOverσ[i][nElem-1].u_n1[2] for i in 1:length(σVector[1,j])]
    u2_500mm[2,j] = [problem2.nodalStatesOverσ[i][nElem-1].u_n1[2] for i in 1:length(σVector[2,j])]
    u2_500mm[3,j] = [problem3.nodalStatesOverσ[i][nElem-1].u_n1[2] for i in 1:length(σVector[3,j])]
    u3_500mm[1,j] = [problem1.nodalStatesOverσ[i][nElem-1].u_n1[3] for i in 1:length(σVector[1,j])]
    u3_500mm[2,j] = [problem2.nodalStatesOverσ[i][nElem-1].u_n1[3] for i in 1:length(σVector[2,j])]
    u3_500mm[3,j] = [problem3.nodalStatesOverσ[i][nElem-1].u_n1[3] for i in 1:length(σVector[3,j])]
end

Post-processing

Let's load the reference experimental solution by Minguet and Dugundji.

# Load reference solution
u1_b1_th0_ref = readdlm(pkgdir(AeroBeams)*"/test/referenceData/compositeCantileverMD/b1_th0_u1.txt")
u2_b1_th0_ref = readdlm(pkgdir(AeroBeams)*"/test/referenceData/compositeCantileverMD/b1_th0_u2.txt")
u3_b1_th0_ref = readdlm(pkgdir(AeroBeams)*"/test/referenceData/compositeCantileverMD/b1_th0_u3.txt")
u1_b1_th45_ref = readdlm(pkgdir(AeroBeams)*"/test/referenceData/compositeCantileverMD/b1_th45_u1.txt")
u2_b1_th45_ref = readdlm(pkgdir(AeroBeams)*"/test/referenceData/compositeCantileverMD/b1_th45_u2.txt")
u3_b1_th45_ref = readdlm(pkgdir(AeroBeams)*"/test/referenceData/compositeCantileverMD/b1_th45_u3.txt")
u1_b2_th0_ref = readdlm(pkgdir(AeroBeams)*"/test/referenceData/compositeCantileverMD/b2_th0_u1.txt")
u2_b2_th0_ref = readdlm(pkgdir(AeroBeams)*"/test/referenceData/compositeCantileverMD/b2_th0_u2.txt")
u3_b2_th0_ref = readdlm(pkgdir(AeroBeams)*"/test/referenceData/compositeCantileverMD/b2_th0_u3.txt")
u1_b2_th45_ref = readdlm(pkgdir(AeroBeams)*"/test/referenceData/compositeCantileverMD/b2_th45_u1.txt")
u2_b2_th45_ref = readdlm(pkgdir(AeroBeams)*"/test/referenceData/compositeCantileverMD/b2_th45_u2.txt")
u3_b2_th45_ref = readdlm(pkgdir(AeroBeams)*"/test/referenceData/compositeCantileverMD/b2_th45_u3.txt")
u1_b3_th0_ref = readdlm(pkgdir(AeroBeams)*"/test/referenceData/compositeCantileverMD/b3_th0_u1.txt")
u2_b3_th0_ref = readdlm(pkgdir(AeroBeams)*"/test/referenceData/compositeCantileverMD/b3_th0_u2.txt")
u3_b3_th0_ref = readdlm(pkgdir(AeroBeams)*"/test/referenceData/compositeCantileverMD/b3_th0_u3.txt")
u1_b3_th45_ref = readdlm(pkgdir(AeroBeams)*"/test/referenceData/compositeCantileverMD/b3_th45_u1.txt")
u2_b3_th45_ref = readdlm(pkgdir(AeroBeams)*"/test/referenceData/compositeCantileverMD/b3_th45_u2.txt")
u3_b3_th45_ref = readdlm(pkgdir(AeroBeams)*"/test/referenceData/compositeCantileverMD/b3_th45_u3.txt")

Finally, we may plot the displacements at $x_1 = 500$ mm for each beam in each configuration. The correlation with the experimental data is good, and matches the numerical results of Minguet and Dugundji as well (not shown).

using Plots
gr()

# Plot configurations
labels = ["\$-u_1\$" "\$u_2\$" "\$-u_3\$"]
xLabel = "\$-u_1, u_2, -u_3\$ [m]"
yLabel = "Load [grams]"
colors = [:blue,:orange,:green]
lw = 2
ms = 5
msw = 0

# Beam 1, θ=0⁰
plt11 = plot(xlabel=xLabel, ylabel=yLabel, title="Beam 1, \$\\theta=0^{\\degree}\$")
plot!([NaN], [NaN], lc=:black, lw=lw, label="AeroBeams")
scatter!([NaN], [NaN], mc=:black, ms=ms, label=" Experimental")
for i=1:3
    plot!([NaN], [NaN], c=colors[i], m=colors[i], lw=lw, ms=ms, msw=msw, label=labels[i])
end
for (x, c) in zip([-u1_500mm[1,1], u2_500mm[1,1], -u3_500mm[1,1]], colors)
    plot!(x, σVector[1,1]*W/g*1e3, c=c, lw=lw, label=false)
end
for (x, y, c) in zip([u1_b1_th0_ref[1,:], u2_b1_th0_ref[1,:], u3_b1_th0_ref[1,:]], [u1_b1_th0_ref[2,:], u2_b1_th0_ref[2,:], u3_b1_th0_ref[2,:]], colors)
    scatter!(x, y, c=c, ms=ms, msw=msw, label=false)
end

# Beam 1, θ=45⁰
plt12 = plot(xlabel=xLabel, ylabel=yLabel, title="Beam 1, \$\\theta=45^{\\degree}\$")
plot!([NaN], [NaN], lc=:black, lw=lw, label="AeroBeams")
scatter!([NaN], [NaN], mc=:black, ms=ms, label="  Experimental")
for i=1:3
    plot!([NaN], [NaN], c=colors[i], m=colors[i], lw=lw, ms=ms, msw=msw, label=labels[i])
end
for (x, c) in zip([-u1_500mm[1,2], u2_500mm[1,2], -u3_500mm[1,2]], colors)
    plot!(x, σVector[1,2]*W/g*1e3, c=c, lw=lw, label=false)
end
for (x, y, c) in zip([u1_b1_th45_ref[1,:], u2_b1_th45_ref[1,:], u3_b1_th45_ref[1,:]], [u1_b1_th45_ref[2,:], u2_b1_th45_ref[2,:], u3_b1_th45_ref[2,:]], colors)
    scatter!(x, y, c=c, ms=ms, msw=msw, label=false)
end

# Beam 2, θ=0⁰
plt21 = plot(xlabel=xLabel, ylabel=yLabel, title="Beam 2, \$\\theta=0^{\\degree}\$")
plot!([NaN], [NaN], lc=:black, lw=lw, label="AeroBeams")
scatter!([NaN], [NaN], mc=:black, ms=ms, label="  Experimental")
for i=1:3
    plot!([NaN], [NaN], c=colors[i], m=colors[i], lw=lw, ms=ms, msw=msw, label=labels[i])
end
for (x, c) in zip([-u1_500mm[2,1], u2_500mm[2,1], -u3_500mm[2,1]], colors)
    plot!(x, σVector[2,1]*W/g*1e3, c=c, lw=lw, label=false)
end
for (x, y, c) in zip([u1_b2_th0_ref[1,:], u2_b2_th0_ref[1,:], u3_b2_th0_ref[1,:]], [u1_b2_th0_ref[2,:], u2_b2_th0_ref[2,:], u3_b2_th0_ref[2,:]], colors)
    scatter!(x, y, c=c, ms=ms, msw=msw, label=false)
end

# Beam 2, θ=45⁰
plt22 = plot(xlabel=xLabel, ylabel=yLabel, title="Beam 2, \$\\theta=45^{\\degree}\$", legend=:bottomright)
plot!([NaN], [NaN], lc=:black, lw=lw, label="AeroBeams")
scatter!([NaN], [NaN], mc=:black, ms=ms, label="  Experimental")
for i=1:3
    plot!([NaN], [NaN], c=colors[i], m=colors[i], lw=lw, ms=ms, msw=msw, label=labels[i])
end
for (x, c) in zip([-u1_500mm[2,2], u2_500mm[2,2], -u3_500mm[2,2]], colors)
    plot!(x, σVector[2,2]*W/g*1e3, c=c, lw=lw, label=false)
end
for (x, y, c) in zip([u1_b2_th45_ref[1,:], u2_b2_th45_ref[1,:], u3_b2_th45_ref[1,:]], [u1_b2_th45_ref[2,:], u2_b2_th45_ref[2,:], u3_b2_th45_ref[2,:]], colors)
    scatter!(x, y, c=c, ms=ms, msw=msw, label=false)
end

# Beam 3, θ=0⁰
plt31 = plot(xlabel=xLabel, ylabel=yLabel, title="Beam 3, \$\\theta=0^{\\degree}\$")
plot!([NaN], [NaN], lc=:black, lw=lw, label="AeroBeams")
scatter!([NaN], [NaN], mc=:black, ms=ms, label="  Experimental")
for i=1:3
    plot!([NaN], [NaN], c=colors[i], m=colors[i], lw=lw, ms=ms, msw=msw, label=labels[i])
end
for (x, c) in zip([-u1_500mm[3,1], u2_500mm[3,1], -u3_500mm[3,1]], colors)
    plot!(x, σVector[3,1]*W/g*1e3, c=c, lw=lw, label=false)
end
for (x, y, c) in zip([u1_b3_th0_ref[1,:], u2_b3_th0_ref[1,:], u3_b3_th0_ref[1,:]], [u1_b3_th0_ref[2,:], u2_b3_th0_ref[2,:], u3_b3_th0_ref[2,:]], colors)
    scatter!(x, y, c=c, ms=ms, msw=msw, label=false)
end

# Beam 3, θ=45⁰
plt32 = plot(xlabel=xLabel, ylabel=yLabel, title="Beam 3, \$\\theta=45^{\\degree}\$")
plot!([NaN], [NaN], lc=:black, lw=lw, label="AeroBeams")
scatter!([NaN], [NaN], mc=:black, ms=ms, label="  Experimental")
for i=1:3
    plot!([NaN], [NaN], c=colors[i], m=colors[i], lw=lw, ms=ms, msw=msw, label=labels[i])
end
for (x, c) in zip([-u1_500mm[3,2], u2_500mm[3,2], -u3_500mm[3,2]], colors)
    plot!(x, σVector[3,2]*W/g*1e3, c=c, lw=lw, label=false)
end
for (x, y, c) in zip([u1_b3_th45_ref[1,:], u2_b3_th45_ref[1,:], u3_b3_th45_ref[1,:]], [u1_b3_th45_ref[2,:], u2_b3_th45_ref[2,:], u3_b3_th45_ref[2,:]], colors)
    scatter!(x, y, c=c, ms=ms, msw=msw, label=false)
end
